Double Stage Reverse Osmosis Ultrapure Electrodeionization Water Purification RO EDI Water Treatment System 1TPH
RO plant is raw water through precision filter, granular activated sand filters, activated carbon filters, compression, and then the pump pressure, the use of (ro) reverse osmosis membrane pore size 1/10000μm make a higher concentration of water into low concentration of water, while the industrial pollutants, heavy metals, bacteria, viruses and other impurities in the water mixed with a large number of full isolation, to achieve the required physical and chemical indicators for drinking and hygiene standards, outputs to clean pure water is the best choice of body replenish water quality. It is key equipment of pure water plant. Double stage RO water system output water conductivity achieve to less than 1uS/cm.
Advantages of Ultra Pure Water System
| 1. Fresh water quality, transparent processing, clean, health, and meet GB requirements |
| 2. High technical, stable operation, easy to maintain, long life time |
| 3. We can design upon customers requirement |
| 4. Competitive price, more profit |
Application of Ultra Pure Water System
| a. Medical production,industrial pharmacy use |
| b. Cosmetics |
| c. Recycling water system |
| d. Chemical, electroplate industrial etc |
| e. Microelectronic, power, and biological project |
| f. Chemical Lab |
| g. Other electronic standard water |
Process
SS304 raw water tank(user supply) → raw water pump → sand filter → carbon filter → softener filter → security(micro) filter → high pressure pump 1st → reverse osmosis system 1st →high pressure pump-2nd reverse osmosis system 2nd→ RO pure water tank(user supply) - UV lamp - outlet
Main parts function
1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter/softener.
2. Multi-medium filter--get rid of turbidity, suspended matter, organic matter, colloid, etc.
3. Active Carbon filter--Remove the color, smell, free chloride, organic matter, harmful matter, etc.
4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Security filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um,
6. High pressure pump--Provide the high pressure to RO membrane.
7. RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.

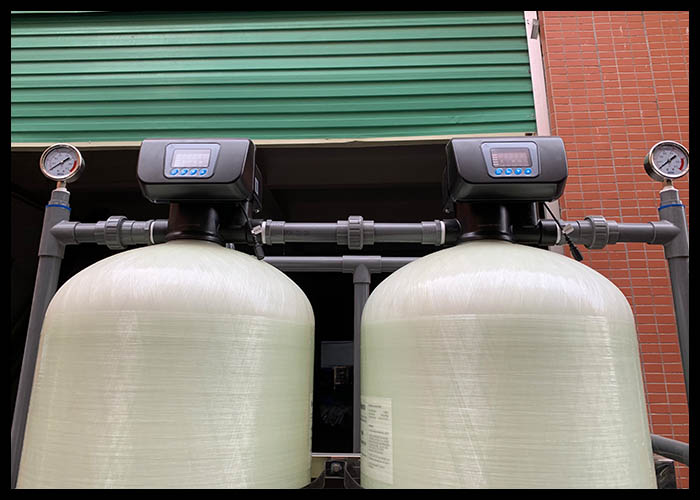

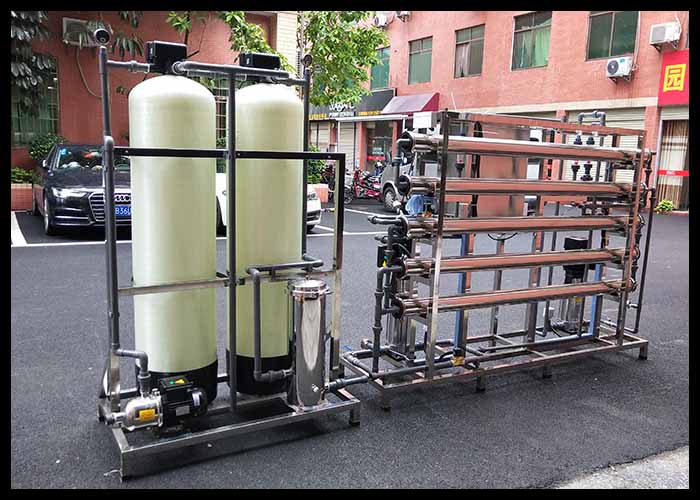

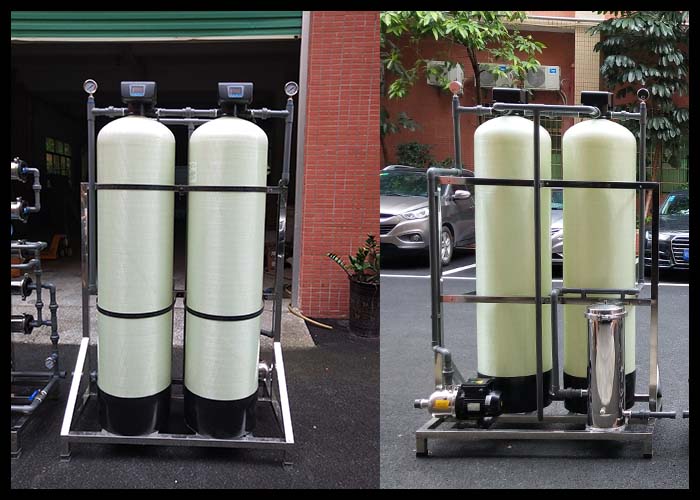

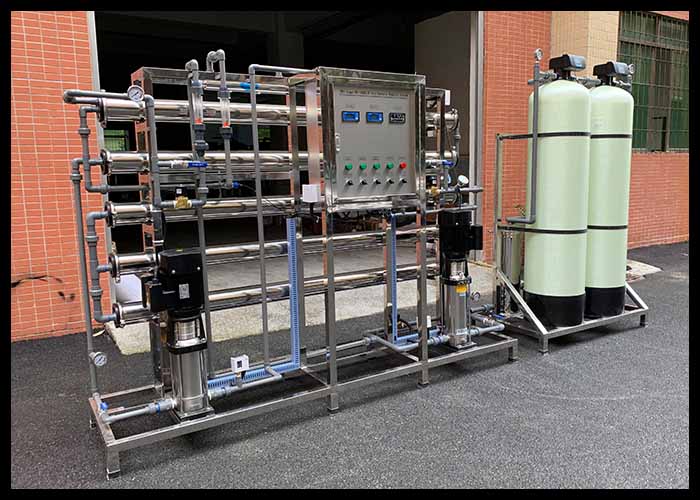

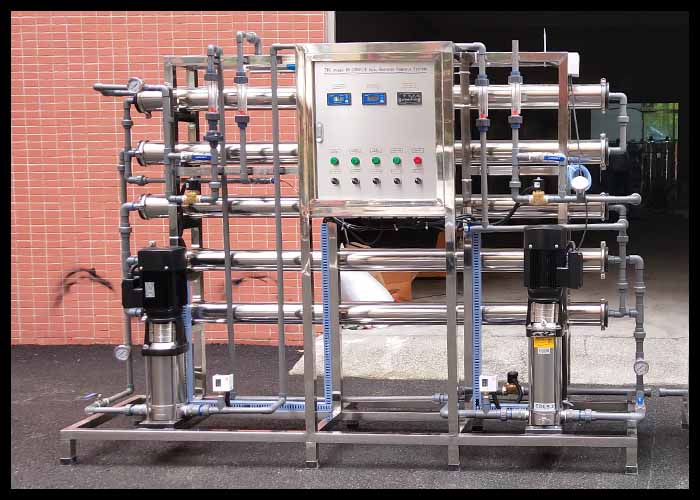

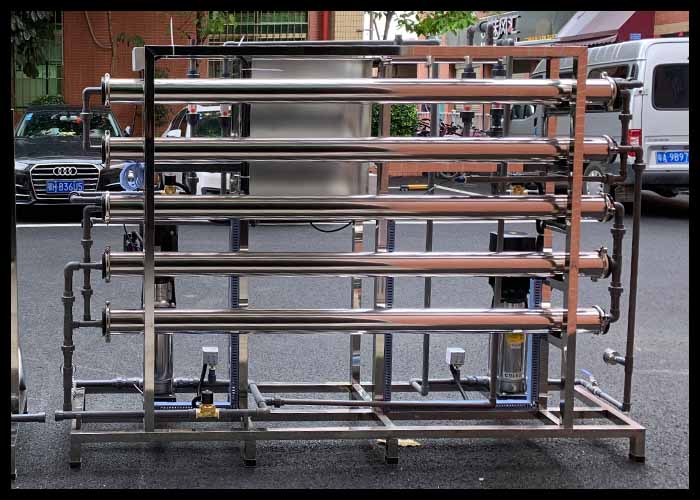

Photo Show
Thank you so much for your value time.Any questions please click "contact now" send us inquiry !
We will reply you within 24 hours. Tel/whatsapp/wechat: +86-13711203110
Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
