3000LPH Water Treatment Reverse Osmosis Purification Machine Hard Water Machine RO Machine

Product Categories
Guangzhou Kai Yuan Water Treatment Equipment Co., Ltd.
Contact Now

3000LPH Water Treatment Reverse Osmosis Purification Machine Hard Water Machine RO Machine

  • 1
  • 2
  • 3

Brand Name : Kaiyuan

Model Number : KYRO-3000LPH

Certification : ISO9001, CE, SGS

Place of Origin : Guangzhou, China

MOQ : >= 1sets

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : >100sets/month

Delivery Time : 1-7working days(depand on raw materials stocking)

Packaging Details : export standard wooden case(plywood), no need to fumigate, suitable for shipping.

Item Name : RO Water System 3000LPH

Production Capacity : 3000liters per hour

Recovery Rate : 50% - 75%

Electrical Power : 110V - 415V 50Hz or 60Hz

Tank Material : FRP/ Stainless Steel/ Carbon Steel

Warranty : 1 year

Desalination Rate : 97%

Contact Now

3000LPH Planta De Tratamiento De Agua Maquina Purificadora De Osmosis Inversa Maquina De Agua Dura Maquina RO Completame

3000LPH Water Treatment Plant Reverse Osmosis Purification Machine Hard Water Machine RO Machine Complete

1. Product Description
Reverse osmosis process uses semi permeable spiral wound membranes to separate and remove dissolved solids,organic, pyrogen, sub micron colloidal matter and bacteria from water. Feed water is delivered under a pressure of approximately 16 kg/cm2 through reverse osmosis membranes. Water permeates the minute pores of the membrane and is delivered as purified water. Impurities in the water are concentrated in the reject stream and flushed to drain. Reverse osmosis is capable of removing 90-99% of total dissolved solids (TDS), 99% of organic, including pyrogen, and 99% bacterial in the feed water.
2. Product Parameter
Parameters of 3TPH RO Water Purifier
Product Name
Material
Brand
Usage
Raw Water Pump
SUS-304
CNP
Provide needed pressure for every pre-treatment filter
Sand Filter
FRP
China
Remove the water contains sediment, manganese, rust, colloid material, and other particles in the above 20UM of substances hazardous to health.
Activated Carbon Filter
FRP
China
Remove the pigment in the water, smell,organisms, reducing the residual value of water and pesticide pollution and other harmful pollutants.
Water Softener(optional)
FRP
China
Water softener can remove Calcium ion(Ca2+) and magnesium ion(Mg2+) to reach the aim of removing hardness from water.
Security Filter
SUS-304
China
Remove fine particles, sand filters can remove very small colloidal particles in the water, so that the turbidity reached 1 degree.
High Pressure Pump
SUS-304
CNP
Provide needed pressure for RO system
RO Membrane
BW30-400IG
USA,Dupont
Can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 97% dissolved salts.
UV Sterilizer /Ozone generator
40W*2
China
Kill bacterial in water. UV for direct drinking water. Ozone generator for bottle water
3. System Advantages
√. Main part (membrane) of reverse osmosis system is imported from USA.
√. Auto stop when no water and full water.
√. Auto controller, RO membrane auto flush to protect membrane.
√. Auto start when pure water tank have no water.
√. Low pressure protection switch to protect high pressure pump when there is no raw water.
√. High efficient and low noise high pressure pump.
√. Product water conductivity meter to monitor product water quality all the time.
√. Input water and output water pressure gauge to monitor RO membrane *differential pressure to remind it's time for chemical cleaning.
√. Inlet water solenoid valve to stop water when machine is stop.
4. Product Processing

Process: raw water tank + raw water pump + quartz sand filter + activated carbon filter + water softener/chemical dosing system(optional) + security filter + high pressure pump + ro system + pure water tank + UV sterilizer(ozone generator) + precision filter + water supply point
3000LPH Water Treatment Reverse Osmosis Purification Machine Hard Water Machine RO Machine
Some parts function
1 booster pump-- provide the pressure to quartz sand filter/active carbon filter
2 Multi-medium filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect.
3 Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.
4 Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
5 Security filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um
6 High pressure pump-- Provide the high pressure to RO membrane
7 RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions
8 UV sterilizer or ozone generator--- kill bacteria

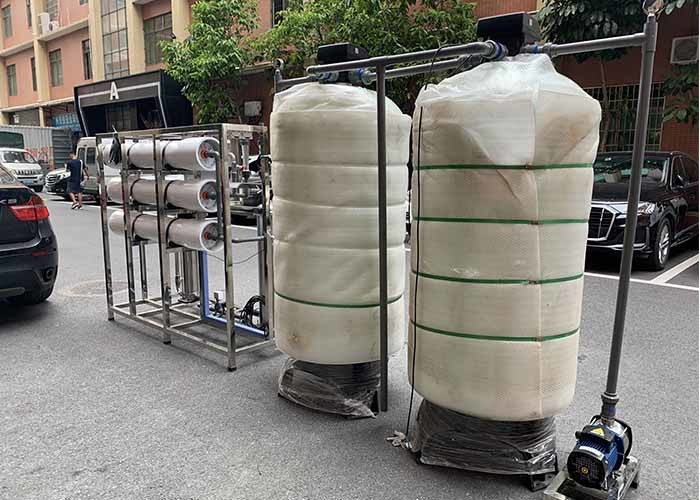

6. Pictures Show

3000LPH Water Treatment Reverse Osmosis Purification Machine Hard Water Machine RO Machine

3000LPH Water Treatment Reverse Osmosis Purification Machine Hard Water Machine RO Machine

3000LPH Water Treatment Reverse Osmosis Purification Machine Hard Water Machine RO Machine


Thank you so much for your value time.Any questions please click "contact now" send us inquiry !We will reply you within 24 hours. Tel/whatsapp/wechat: +86-13711203110

Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
