SUS304 500LPH Water Softener System Reverse Osmosis Purifier

Name: SUS304 500LPH Water Softener System Reverse Osmosis Purifier
Brand: Kaiyuan
Price: 1 USD

SUS304 500LPH Water Softener System Reverse Osmosis Purifier Manufactures

Brand Name : Kaiyuan

Model Number : KYRO-500LPH

Certification : ISO9001, CE, SGS

Place of Origin : Guangzhou, China

MOQ : >= 1sets

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : >300sets/month

Delivery Time : 2-20working days(depand on raw materials stocking)

Packaging Details : export standard wooden case(plywood), no need to fumigate, suitable for shipping.

Name : 500LPH Water Softener System Reverse Osmosis Purifier

Application : Pharmaceuticals/ Electronics/ Semiconductors

Membrane : FILMTEC DOW(DuPont) LCLE-4040

Control Valve : Automatic / Manual

Production Capacity : 1TPH

Electrical Power : Standard 220~240V/ 380~415V, 50Hz/60Hz, 1ph/3ph (customize)

Tank Material : FRP fiber glass/ stainless steel 304/316

Pretreatment : Sand / Carbon / PP Filter Cartridge

Pump : CNP, Grundfos optional

Desalination Rate : >=97%

Contact Now

Stainless Steel SUS304 500LPH Water Softener System Reverse Osmosis Purifier Water Treatment Filter

Input Your Owned Water, Output Your Needed Water

Kai Yuan company which is >12years experience in water treatment with ISO9001, CE, SGS Certification, good feedback, excellent quality and top 5 supplier in China. (Our mission: Input your owned water, output your needed water. Our values: Build win-win relationship with client, staff and supplier.)

Stainless Steel SUS304 500LPH Water Softener System Reverse Osmosis Purifier Water Treatment Filter

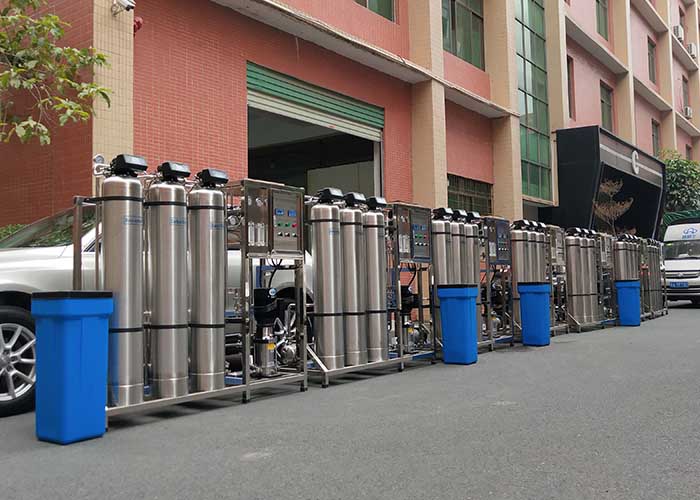

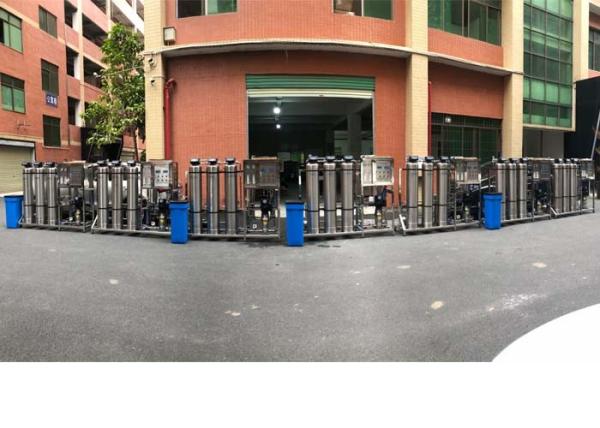

this is total 7sets to one of Mongolia client

Name	RO system	Voltage	220V/ 380V
Size	16506301800mm	Power	1.5KW
Macterial	SS304 tank+ SS304pipe	Recovery rate	90%
Function	raw water purifier	Water production	0.5T/H
Application	Industrial of electricity, electronics, food, beverage, pharmacy, chemistry; drinking water project, petrochemical industry, seawater desalination
Effect	SDI≤1, turbidity NTU≤1, SS<1mg/L, removal rate of microorganisms, bacteria, E. coli, pathogens >99%

Humans cannot do without water!
According to statistics, due to high pollution, the salt content in many countries is high, and heavy metals in some areas even exceed the standard, which directly affects human life and health and industrial economic development.

Equipment summarize:


Reverse osmosis system is using city water as raw water, then treat water by Pre-filter (water softener is optional), reverse osmosis membrane. It can remove particle, colloid, organic impurity, heavy metal ion, bacteria, virus in water, and it can also remove 99% dissolved salt. The whole system desalination rate can reach 97%-99% to make permeated water conductivity<10 us/cm. Dense water also won’t polluted environment.

 Reverse osmosis equipment no need to consider about input water quality too much. And the main features of RO equipment is no need to do any regeneration, it can be keep stable for long time.

 The second stage reverse osmosis system use the first stage reverse osmosis system output water as raw water to make water to be more pure. Normally output water conductivity<2 us/cm.
EDI membrane: ultrapure water, output conductivity less than 0.2uS/cm

Process

raw water tank(customer provided)→ raw water pump→quartz sand filter →activated carbon filter→security filter→1st #high pressure pump→1st # ro system→pure water tank(customer provided)+UV sterilizer(ozone generator) +water supply point

Main parts function
1. Raw water pump	-- provide the pressure to sand/carbon filter
2. Sand filter	-- get rid of turbidity, suspended matter, organic matter, colloid and so on
3. Carbon filter	--Remove color, free chloride, organic matter, harmful matter and so on
4. Anti-scale dosing	--add antiscalant(buyer supply) , absorb Ca2+, Mg2+(main elements for composing scale), reduce hardness of raw water.
5. Micron filter	--prevent any deposition of large particles, some bacteria, and viruses into the RO membrane, The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity.
6. High pressure pump	-- Provide the high pressure to RO membrane, at least 2.0 MPA
7. RO system	--RO system is the heart part of pure water plant. The RO systems are capable of removing over 99% of ions, bacteria, particles and 98% of organics and silica.
8. EDI system	--ultrapure water, output conductivity less than 0.2uS/cm
9. UV sterilizer	--for killing bacterial in water, be safe for drinking.

SUS304 500LPH Water Softener System Reverse Osmosis Purifier

Thank you so much for your value time.Any questions please click "contact now" send us inquiry !

We will reply you within 24 hours. Whatsapp/ wechat/ tell: +86 13660858152

How to choose a suitable RO system?

1)- First you need to tell us what your raw water source is.

2)- It is best to provide a raw water quality report

3)- What kind of water quality requirements you want to achieve.

4)- And How much litre you need for this RO equipment.

5)- Any question you don't understand, you can always consult us and we have a team of excellent engineers.

6)- More Than 90% Of Our RO Pure Water Equipment Is Customized.
6.1,We can design the machines according your requirements, like materil, power and so on. At the same time, our engineers will give you our professional suggestions, as you know, we have been in this industry more than 20 years.
6.2,We can give you free technical support and consultation such as design your factory, make the factory layout drawing and so on.
