10TPH Purification Seawater Reverse Osmosis Desalination Plant FRP Tank

Brand Name : Kaiyuan

Model Number : KYRO-10000LPH

Certification : ISO9001, CE, SGS

Place of Origin : Guangzhou, China

MOQ : negotiation

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : >300sets/month

Delivery Time : 1-7working days(depand on raw materials stocking)

Packaging Details : export standard wooden case(plywood), no need to fumigate, suitable for shipping.

Name : RO Water Treatment System

Production Capacity : 10000 litters per hour

Electrical Power : 220/380V 50/60Hz

Tank Material : FRP

Pipe fitting : SUS304/ U-PVC

Function : Remove Dissolved Solids From Water

Feed Water TDS : <2000mg/L

Desalination Rate : >=97%

Contact Now

10TPH Purificateur Deau Membranas Para Osmose Inverse Processus De Purification De Leau Usine De Dessalement Ro

RO Water Treatment System Description
1.The reverse osmosis device is an equipment to purify the saltine water with the action of pressure difference of semi permeable membrane. It is called reverse osmosis, as it is counter to natural penetration direction. Different materials have different osmotic pressures.
2.The reverse osmosis method to adopt larger osmotic pressures is used to obtain the purpose to separate, extract, purify and condense.
3.More than 97% soluble salts and 99%glues, microbe, particulate and organic substances and etc can be removed with the reverse osmosis.
4.It becomes the most idea equipment for the modem program of pure water, hyper pure water, and airspace water. The remarkable characteristics of the equipment are shown as lower energy consumption, no pollution, simple techniques, high water quality, easy operation and maintenance.
Model Number
KYRO-10TPH
Raw water pump
CNP pump ,SUS-316 material
Sand filter
FRP material ; Size : φ1200×2300 ; Media :1800kg
Activated carbon filter
FRP material ; Size : φ1200×2300 ; Media :550kg
Iron and manganese removal filter
FRP material ; Size : φ1200×2300 ; Media :1800kg
Other systems
CIP cleaning system ; Dosing system ; Chlorine system ...
High pressure pump
CNP pump ,SUS-316 material
RO Membrane
USA Dupont
Disinfection
UV Sterilizer
RO Water Treatment System Details
1. Capacity: 10000 L / H
2. Rated power: 7.5KW/H
3. Voltage: 110V / 220V / 380V, 50Hz / 60Hz, single phase / 3phase
4. Desalting rate:>=97%
RO Water Treatment System Performance
⇒ Main part (membrane) of reverse osmosis system is imported from USA.
⇒ Auto stop when no water and full water.
⇒ Auto controller, RO membrane auto flush to protect membrane.
⇒ Auto start when pure water tank have no water.
⇒ Low pressure protection switch to protect high pressure pump when there is no raw water.
⇒ High efficient and low noise high pressure pump.
⇒ Product water conductivity meter to monitor product water quality all the time.
⇒ Input water and output water pressure gauge to monitor RO membrane *differential pressure to remind it's time for chemical cleaning.
⇒ Inlet water solenoid valve to stop water when machine is stop.
RO Water Treatment System Consumables
There are several kinds of consumables you need to replace regularly.

a. Quartz sand: replaced about every 15 months. 50kg/bag,
b. Activated carbon: replaced about every 15 months. 25kg/bag,
c. Resin: replaced about every 15 months. 25L/bag,
d. PP Filter cartridge: replaced about every 1 month.
e. Ro membrane: replaced about every 2 year.

We suggest you buy 1- 2 years of PP filter cartridges together with machine. Because these PP filter cartridges need to replace every month.

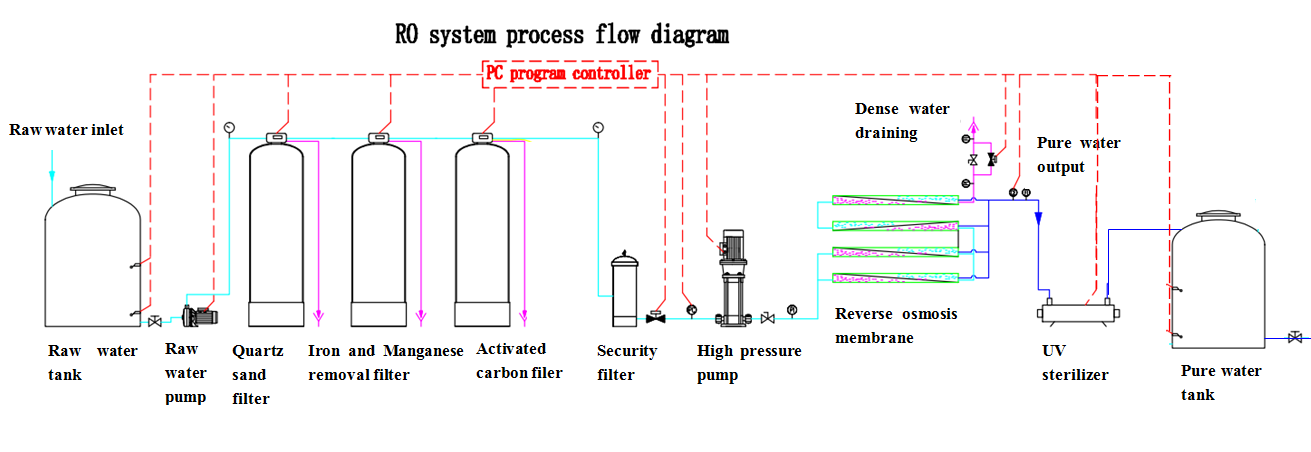

RO Water Treatment System Processing

10TPH Purification Seawater Reverse Osmosis Desalination Plant FRP Tank

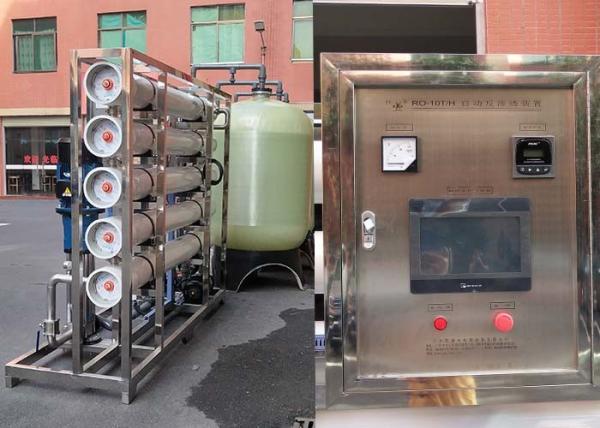

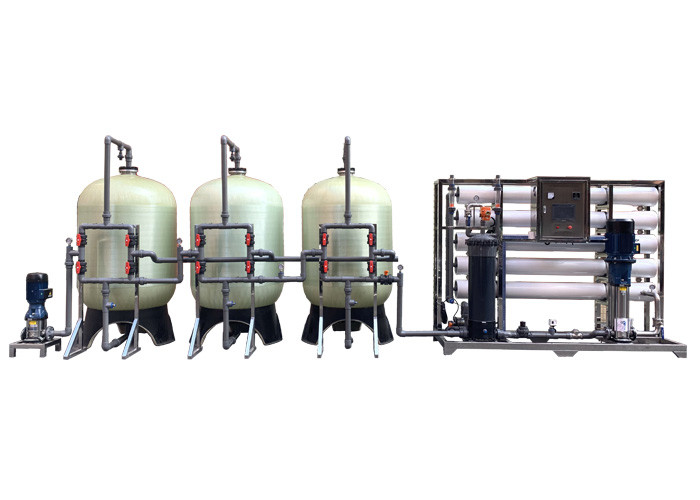

RO Water Treatment System Show
10TPH Purification Seawater Reverse Osmosis Desalination Plant FRP Tank
10TPH Purification Seawater Reverse Osmosis Desalination Plant FRP Tank

Thank you so much for your value time. Any questions please send us inquiry or chat now!
We will reply you within 24hours. Whatsapp/ wechat/ tell: +86 13711203110

Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
